PERSPECT Database of 2D phantoms

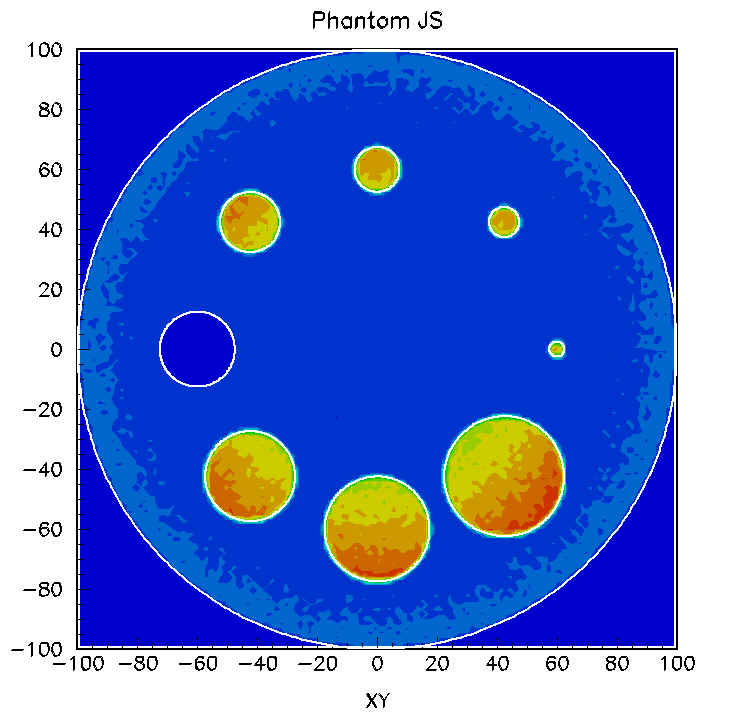

ASCII text file containing the phantom matrix.

Rows: 128×182
Cols: 128×128

Associated setup:
Angle step: 2.8125°
Total projections: 128
Radioactive sources: Total 8 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:8
Simulation time: 500 s
Phantom activity: 3,790,000 Bq
Total photons emitted: 1,895,000,000
Total photons detected: 5,558,242
Physical dimensions: Cylinder, R = 100 mm, h = 10 mm
Absorptive material: Water (R = 100 mm)
Remarks: 1 cold spot (Cyl:5)

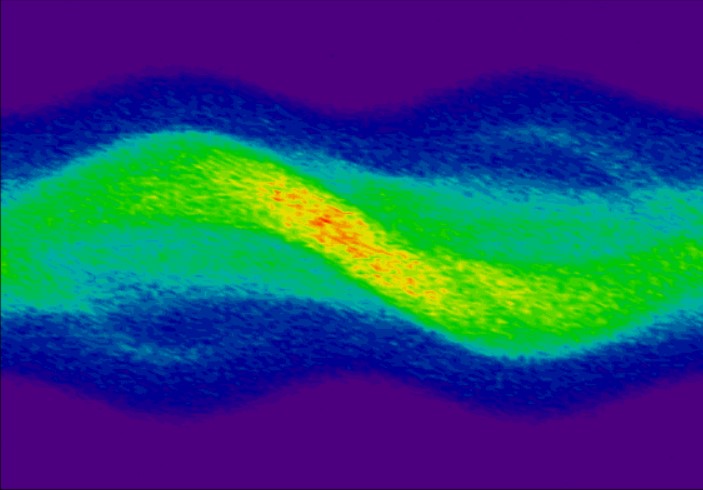

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 990
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:3.5:7
Simulation time: 150 s
Phantom activity: 3,565,000 Bq
Total photons emitted: 534,750,000
Total photons detected: 1,531,868
Absorptive material: Water
a = 80 mm, b = 100 mm, Zcut = 10 mm
Remarks: Hot-spots defined in disk geometry

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 2489
Physical dimensions: Cylinder
R = 100 mm, h = 10 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128

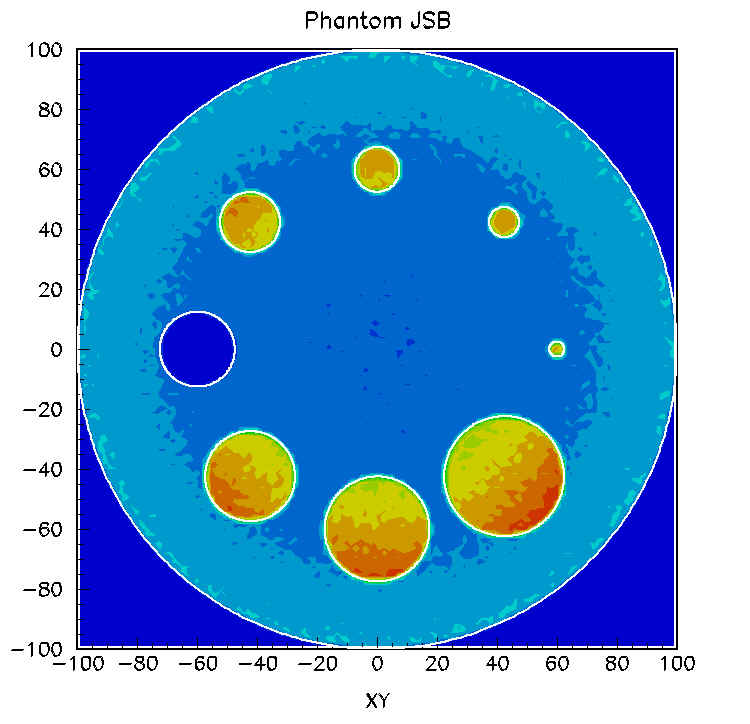

Radioactive sources: Total 8 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:4
Simulation time: 480 s
Phantom activity: 5,790,000 Bq
Total photons emitted: 2,779,200,000
Total photons detected: 8,287,553
Physical dimensions: Cylinder, R = 100 mm, h = 10 mm
Absorptive material: Water (R = 100 mm)
Remarks: Background activity doubled; 1 cold spot (Cyl:5)

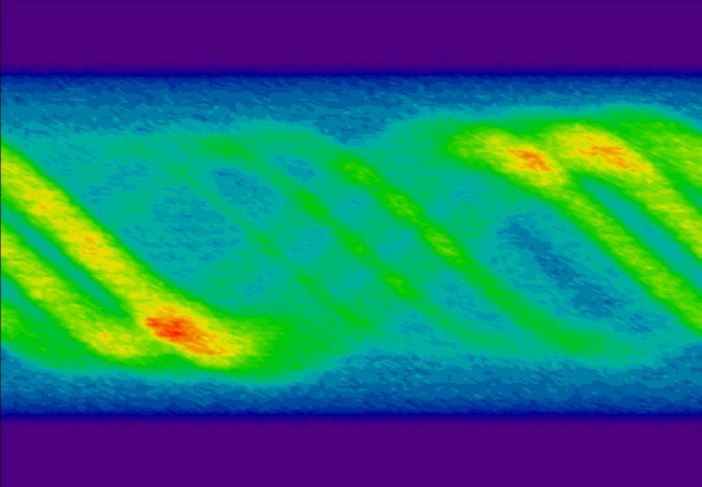

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 1412
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128

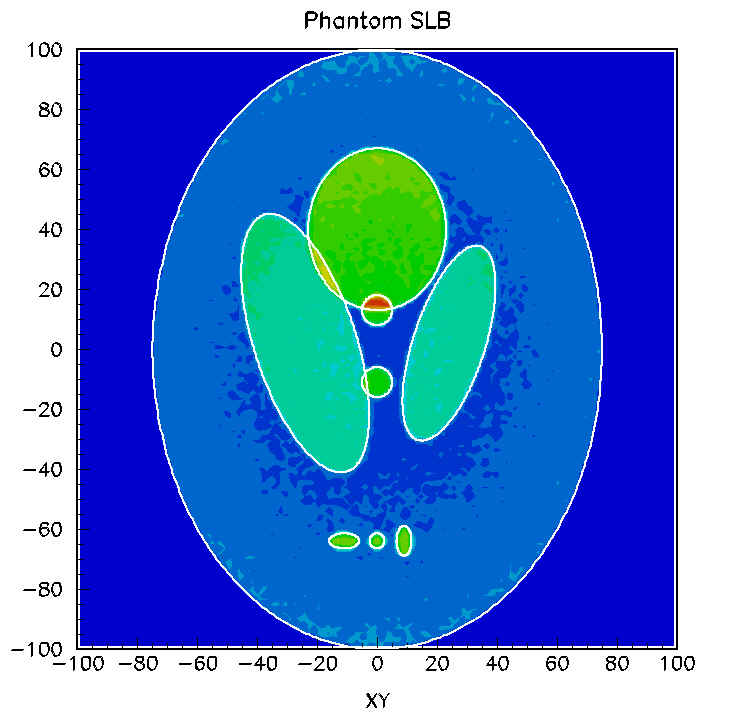

Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 2:3.5:7
Simulation time: 200 s
Phantom activity: 5,065,000 Bq
Total photons emitted: 1,013,000,000
Total photons detected: 2,993,730
Physical dimensions: Ellipse, a = 75 mm, b = 100 mm
Absorptive material: Water, a = 80 mm, b = 100 mm, Zcut = 10 mm
Remarks: Background activity doubled; hot-spots defined in disk geometry

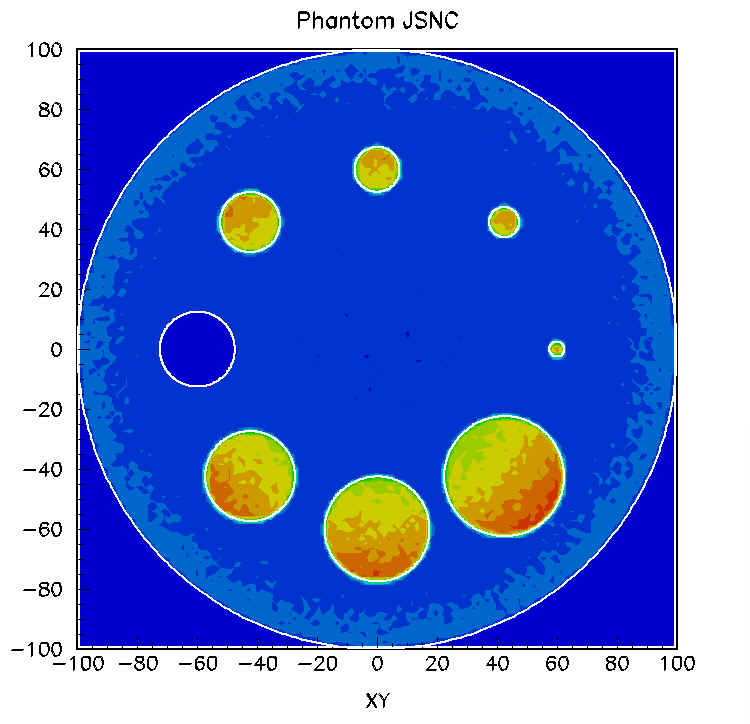

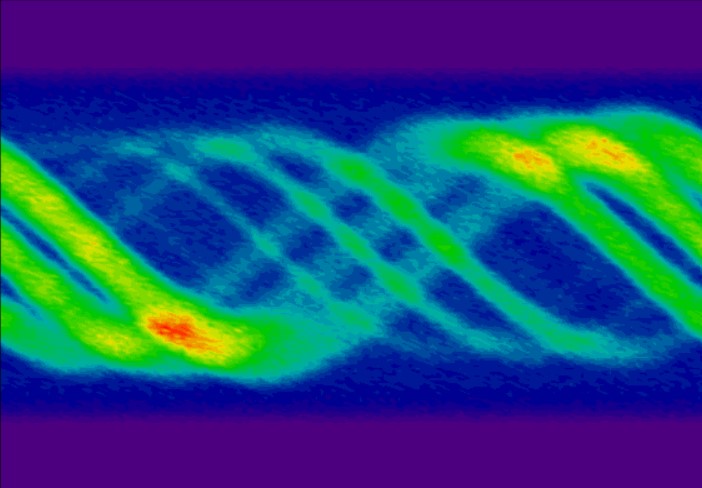

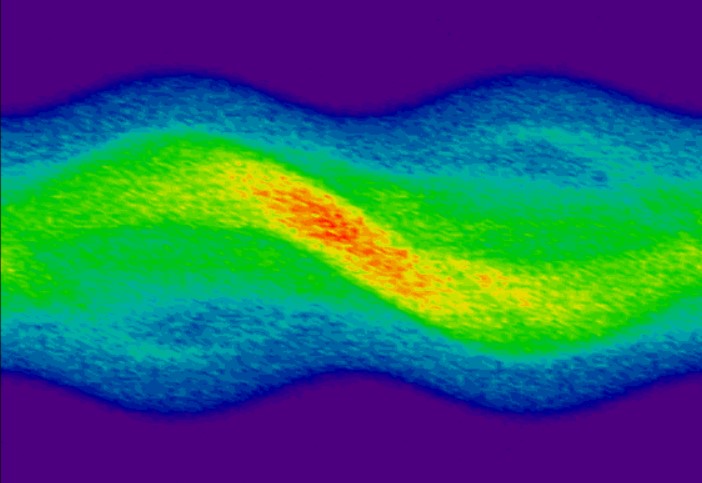

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 2043
Physical dimensions: Cylinder
R = 100 mm, h = 10 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128
Radioactive sources: Total 8 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:8
Simulation time: 100 s
Phantom activity: 3,790,000 Bq
Total photons emitted: 379,000,000
Angular cut: Phi < 1.80°
Total photons detected: 4,817,492
Physical dimensions: Cylinder, R = 100 mm, h = 10 mm
Absorptive material: Water (R = 100 mm)
Remarks: Ideal detection as standard JS phantom but without collimator; 1 cold spot (Cyl:5)

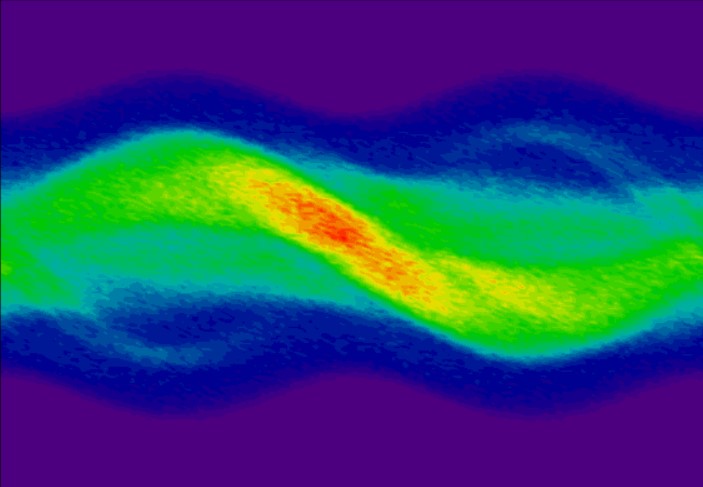

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 2765
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128
Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:3.5:7
Simulation time: 100 s
Phantom activity: 3,565,000 Bq
Total photons emitted: 356,500,000
Angular cut: Phi < 1.80°
Total photons detected: 4,398,837
Physical dimensions: Ellipse, a = 75 mm, b = 100 mm
Absorptive material: Water, a = 80 mm, b = 100 mm, Zcut = 10 mm

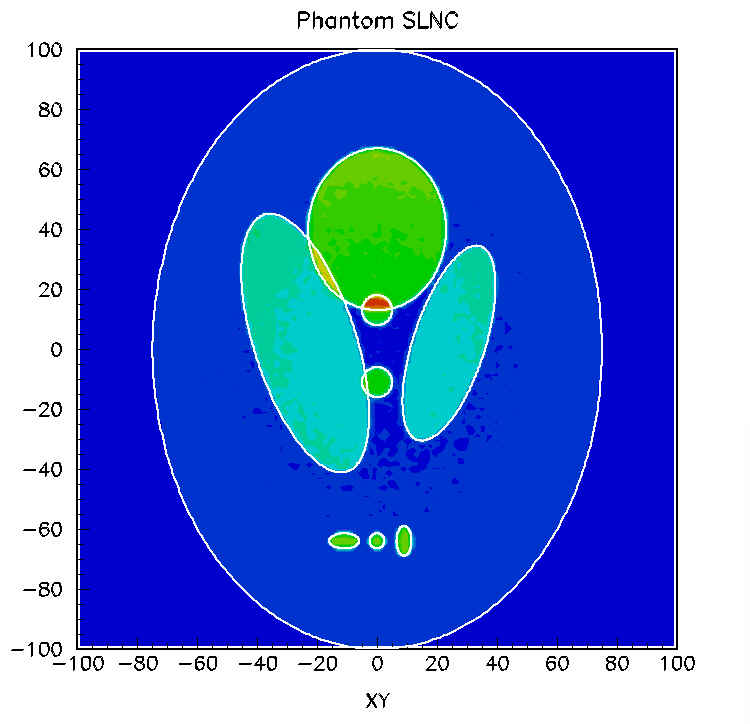

Remarks: Ideal detection as standard SL phantom but without collimator; hot-spots defined in disk geometry

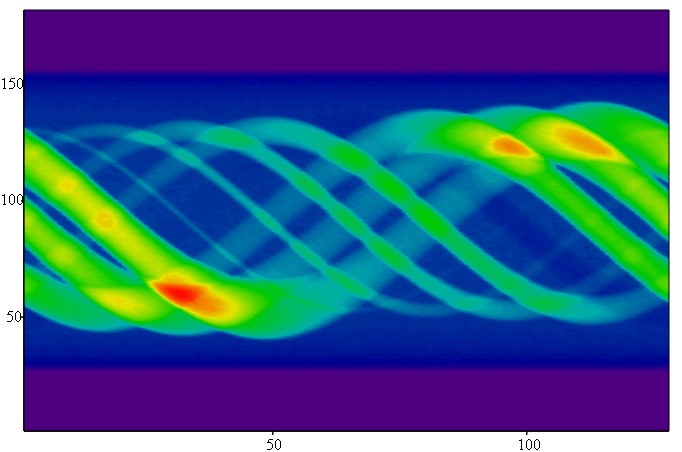

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 62073
Physical dimensions: Cylinder
R = 100 mm, h = 10 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128
Radioactive sources: Total 8 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:8
Simulation time: 1.0 s
Phantom activity: 7,580,000 Bq
Total photons emitted: 485,120,000
Total photons detected: 147,605,293 (30.43%)
Physical dimensions: Cylinder, R = 100 mm, h = 10 mm
Absorptive material: Water (R = 100 mm)
Remarks: Ideal collimator; as standard JS phantom with Phi ~ 0.0 deg; 1 cold spot (Cyl:5)

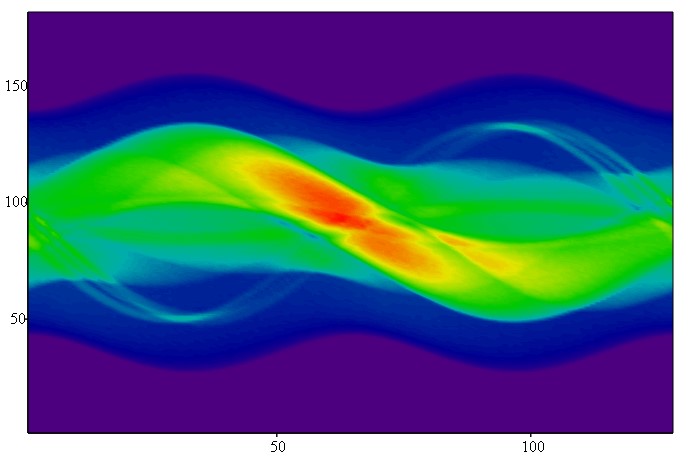

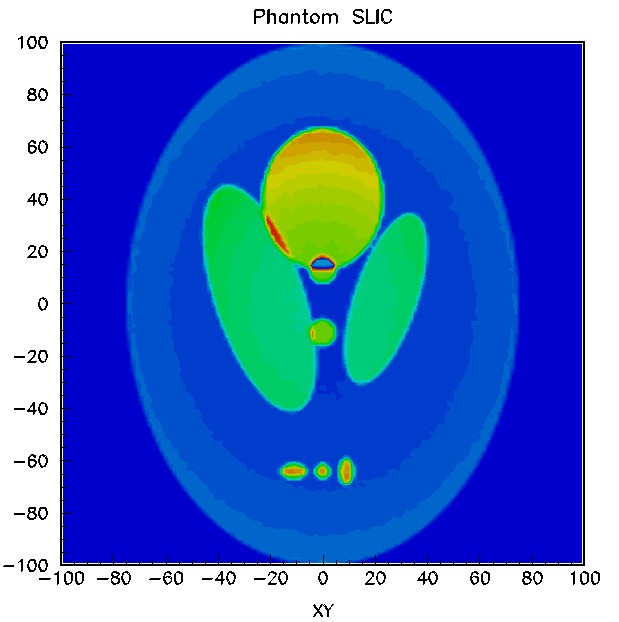

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 82447
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128
Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 1:3.5:7
Simulation time: 1.0 s
Phantom activity: 7,130,000 Bq
Total photons emitted: 456,320,000
Total photons detected: 137,535,930 (30.14%)
Physical dimensions: Ellipse, a = 75 mm, b = 100 mm
Absorptive material: Water, a = 80 mm, b = 100 mm, Zcut = 10 mm
Remarks: Ideal collimator; as standard SL phantom with Phi ~ 0.0 deg; hot-spots defined in disk geometry

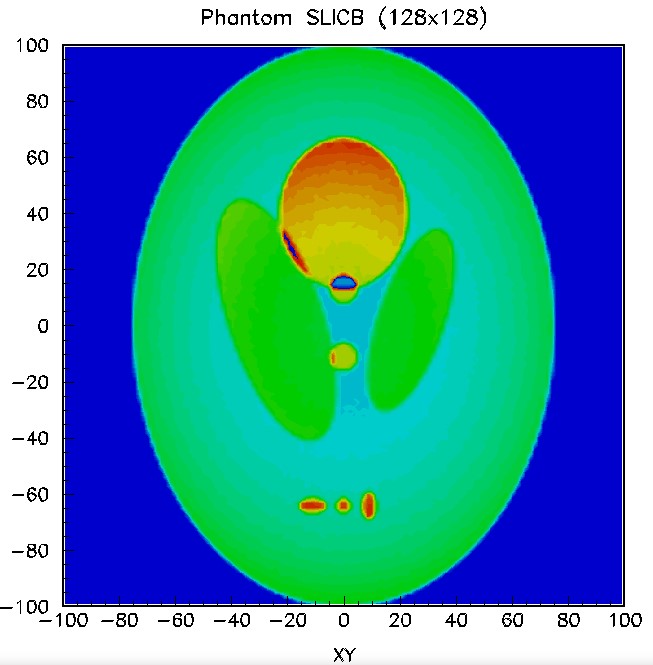

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 48765
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128

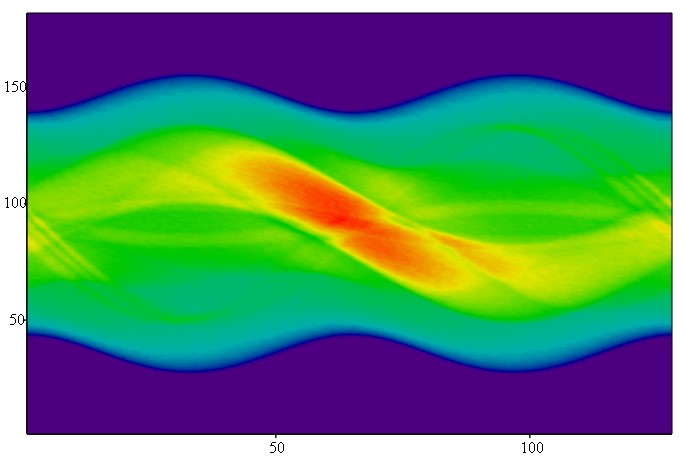

Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 4:3.5:7
Simulation time: 0.5 s
Phantom activity: 16,130,000 Bq
Total photons emitted: 516,160,000
Total photons detected: 167,620,621 (32.47%)
Physical dimensions: Ellipse, a = 75 mm, b = 100 mm
Absorptive material: Water, a = 80 mm, b = 100 mm, Zcut = 10 mm
Remarks: Ideal collimator; high background; as standard SL phantom with Phi ~ 0.0 deg; hot-spots defined in disk geometry

ASCII text file containing the phantom matrix.

Matrix size: 128×128
Max count: 35474
Physical dimensions: Ellipse
a = 75 mm, b = 100 mm

Rows: 128×182
Cols: 128×128

Associated setup:
Matrix size: Rows 128×182, Cols 128×128
Angle step: 2.8125°
Total projections: 128

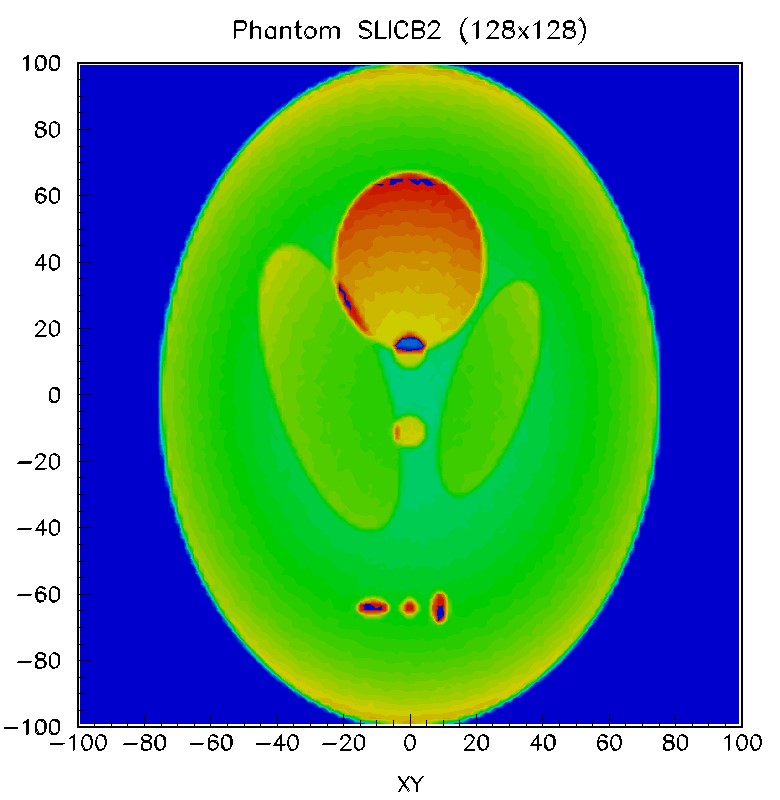

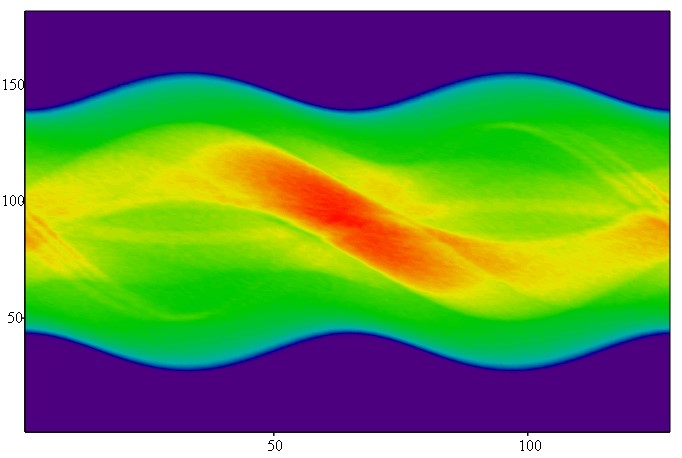

Radioactive sources: Total 9 sources, ¹²³I (159 keV), Background SRC = 0, Ratio 8:3.5:7
Simulation time: 0.3 s
Phantom activity: 28,130,000 Bq
Total photons emitted: 540,096,000
Total photons detected: 179,656,302 (33.26%)
Physical dimensions: Ellipse, a = 75 mm, b = 100 mm
Absorptive material: Water, a = 80 mm, b = 100 mm, Zcut = 10 mm
Remarks: Ideal collimator; 2x high background; as standard SL phantom with Phi ~ 0.0 deg; hot-spots defined in disk geometry
